Documentation

Mom reflects my firm belief that documentation is integral to good programming.

Mom’s html documentation (included in the .tgz packages on this site and in groff releases) is extensive, carefully written, takes nothing for granted, and is cross-referenced with hundreds of links to ease navigation. The html files contain no graphics or other froo-froo to slow down page loading.

Quite a number of people have asked that I put the documentation on line. It’s the same documentation installed on your system if you already have groff (see man groff_mom for its exact location).

Link to the online documentation

Read and enjoy!

Examples of some source files

Typesetting

Mom is primarily designed to format documents based on semantic tags that identify paragraphs, heads, subheads, citations and so on. However, she can be used to typeset material manually, where elements of typographic style and page layout are entirely set by the user.

\# Most mom users rely on mom's document processing macros to
\# format their work.  The doc processing macros take care of all
\# things typographic and are simple, clear and easy to learn.
\# The kind of "by hand" typesetting this file shows off is really
\# geared toward professional typographers.  Bear in mind, though,
\# that the full power of mom's typesetting capabilities can be
\# brought to bear on document processing as well.
\#
\# Basic page setup
\#
.PAGE 8.5i 11i \" Printer sheet size
.L_MARGIN 1i   \" Left margin 1 inch
.R_MARGIN 1i   \" Right margin 1 inch (calculates the line length)
\#
\# Basic type parameters
\#
.FAMILY  T     \" Times Roman family
.FT      B     \" Bold font
.PT_SIZE 12    \" Point size
.LS      14    \" Leading (line spacing)
.LEFT          \" Set lines flush left, nofill mode
\#
\# Refinements
\#
.HY            \" Hyphenate
.KERN          \" Automatic pairwise kerning
.LIGATURES     \" Automatic ligature generation
.SMARTQUOTES   \" Enable smartquotes
.SS 0          \" No extra space between sentences
\#
.ALD 1i-1v     \" Advance 1 inch from top of paper to first baseline
Example 1\*[BU 2]:
.ALD .25v      \" Advance an extra 1/4 linespace
.UNDERSCORE 3.75p "T\*[BU 4]asting notes using padding, string tabs \
and multi-columns"
\#
.SP            \" Add an extra line space
\#
.FAM H         \" Helvetica family
.PT_SIZE 10
.LS  11        \" New leading
\#
\# The following uses a combination of padding, string tabs,
\# and the FWD escape to set up five tabs with 1-pica gutters
\# stretched over the full line length.
\#
.SILENT        \" Don't print the next line
.PAD "\*[ST1]VIN#\*[ST1X]\*[FWD 1P]\*[ST2]ROBE#\*[ST2X]\*[FWD 1P]\*[ST3]NEZ#\*[ST3X]\*[FWD 1P]\*[ST4]BOUCHE#\*[ST4X]\*[FWD 1P]\*[ST5]COMMENTAIRES\*[ST5X]"
.SILENT OFF    \" Resume normal printing of text
\#
\# Now that the string tabs have been marked off, we "set" them.
\#
.ST 1 L        \" First string tab flush left, nofill mode (no need for .BR's between input lines)
.ST 2 L QUAD   \" Remaining tabs are flush left/rag right, fill mode
.ST 3 L QUAD
.ST 4 L QUAD
.ST 5 L QUAD
\#
.TAB 1         \" Call first tab
.UNDERSCORE "VIN"
.TN            \" Move to next tab and stay on the same baseline
.UNDERSCORE "ROBE"
.TN            \" Ibid
.UNDERSCORE "NEZ"
.TN            \" Ibid
.UNDERSCORE "BOUCHE"
.TN            \" Ibid
.UNDERSCORE "COMMENTAIRES"
.TQ            \" Quit tabs
\#
.ALD 6p        \" Advance an extra 6 points
.FT  R         \" Change font to roman (medium)
.MCO           \" Turn multi-column mode on
\#
.TAB 1                 \" Notice that this tab gets set line-for-line
\*[IT]Peelee Island    \" Set italic
\*[PREV]Gewürztraminer \" Revert to former font (roman)
2000
(Canada)
.MCR           \" Return to top of column
.TAB 2         \" Call tab 2; in multi-column mode, don't use .TN
Jaune pâle.
.MCR
.TB 3          \" Notice that from here on, we use the alias TB instead of TAB
Frais, fruité, ci\%tronné, arômes fortes de lichee et de fruits
tropicaux.
.MCR
.TB 4
Doux, fruité, bien équilibré avec une bonne acidité.
.MCR
.TB 5
Bon apéro.  Servir avec des plats
.RW .1         \" Reduce Whitespace between letters to tighten this line
indiens ou \%chinois.
.RW 0          \" Back to normal spacing between letters
.BR
Excellent rapport qualité/prix.
.MCX 8p        \" Multi-column mode off; advance an extra 8 points
.MCO           \" Re-invoke multi-columns for next wine description
.TB 1
\*[IT]Carau Pujol
\*[ROM]Tannat
1995
(Uraguay)
.MCR
.TB 2
Rubis foncé, vio\%lacée, presque opaque.
.MCR
.TB 3
Belles arômes de fruits foncés (prunes, cerises noires, cassis).
Odeurs tertiares de cuir, cèdre, violets, eucalyptus, avec une
trace exotique de Band-Aid*\*[BU 12].
\#
\# The \*[BU 12], above, pulls the period back so that it falls
\# underneath the asterisk. \*[BP>n<] could have been used instead
\# if you prefer to use points rather than kern units.
\#
.MCR
.TB 4
Très rond, tannins mûres et veloutés, avec un long finis
fruité et doucement alcoolique.
.MCR
.TB 5
Superbe\|!  Une aubaine à ne pas manquer.  Prêt à boire
maintenant.
.MCX 1v  \" Multi-columns off; advance an extra linespace
\#
\# Now, an example of a hanging indent.  This is excessively fussy
\# from a typographic standpoint in that it hangs the asterisk
\# outside the current left margin so that the text following it
\# lines up with with the text in the tasting notes.  Notice that
\# in order to use a hanging indent, you must first set a left
\# indent.
\#
.FT      I     \" Change font to italic
.PT_SIZE -.5   \" Reduce point size by 1/2 point
.LS      -.5   \" Reduce leading by 1/2 point
.JUSTIFY       \" Set text justified
\#
\# Now, move the left margin back by the width of an asterisk plus 2 points...
\#
.L_MARGIN -(\w'*'+2p)
\#
\# ...and set a left indent equal to the width of an asterisk plus 2 points
\#
.IL \w'*'+2p
\#
\# Now, set the hanging indent equal to the left indent,
\# effectively pulling the first line of the following text back
\# to the new left margin.  Subsequent output lines will be
\# indented by the .IL amount.  Notice that when using the \w
\# inline escape, there's no need to append a unit of measure to
\# it.
\#
.HI \w'*'+2p
*\*[FWD 1p]"Band-Aid" means the slightly sweet, vaguely chemical
smell associated with medical-grade plastics, often found in
wines from terroirs in South America.  Provided a wine has
sufficient concentration of fruit aromas and complex tertiary
characteristics, Band-Aid is a Good Thing.  Otherwise, it smells
like cheap lipstick.
\#
\# Notice, above, that although the values for IL and HI are the
\# width of an asterisk plus 2 points, when setting the first line
\# of text (the one with the asterisk at the beginning), we put
\# only 1 point of space after the *. This is so the double-quotes
\# also hang slightly outside the margin to align visually with
\# the rest of the text.  As already noted, this is an extremely
\# fussy example. :)
\#
.IQ CLEAR      \" Cancel and clear stored indent values
.L_MARGIN 1i   \" Reset left margin to its original value.
\#
.SP      4v
.DRH 1 7P \n[.ll]u-14P
.SP      4v
\#
.FAM     T
.FT      B
.PT_SIZE 12
.LS      14
.LEFT
\#
Example 2:
.ALD .25v
.UNDERSCORE 3.75p "Cutaround using left\*[FU 2]/right indents, multi columns \
and a dropcap"
.SP
\#
.FT R
.PT_SIZE 11
.LS 12
.BR_AT_LINE_KERN OFF    \" In justified text, it's best to have this OFF
\#
.TAB_SET 1  0      18.5P  J
.TAB_SET 2  20.5P  18.5P  J
.MCO
.ALD 5P+9p
\#
\# The little picture of tux.
\#
.PSPIC penguin.ps
.MCR
.TAB 1
.XCOLOR        red   \" Initialize the X11 color, red
.DROPCAP_COLOR red
.DROPCAP_FONT  B
.DROPCAP L 3 COND 80 \" i.e. the letter L dropped 3 lines, condensed to 80% width.
.EW .2
orem ipsum dolor sit amet, consetetur sa\%dip\%scing elitr, sed
diam nonumy eir\%mod tempor invidunt ut labore et dolore magna
aliquyam erat, sed diam voluptua.
.EW 0
.TI 1P
At vero eos et accusam et justo duo dolores et ea rebum.  Stet
clita kasd gubergren, no sea taki-
.SPREAD              \" Force justify preceding line before starting indent
.IR 3.5P
kimata sanctus est lorem ipsum dolor sit amet.  Lorem ipsum dolor
sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod
tempor.
.EW .2
.TI
Invidunt ut labore et dolore magna ali\%qu\%yam erat, sed diam
voluptua.  At
.EW 0
vero eos et accusam et justo duo dolores et ea rebum.
.TI
Stet clita kasd gubergren, no sea ta-
.SPREAD             \" Force justify preceding line before quitting indent
.IRQ
kimata sanctus est lorem ipsum dolor sit amet.  Lorem ipsum dolor
sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod
tempor in\%vi\%dunt ut labore et dolore magna aliquyam erat.  Sed
diam voluptua, at vero eos et accusam et justo duo
.SPREAD
.EW .3
dolores et ea rebum.  Stet clita no kasd guber-
.SPREAD
.MCR
.TB 2
gren, no sea takimata sanctus est lorem ipsum
.EW 0
dolor sit amet.  Consetetur sadipscing elitr, sed diam nonumy
eirmod tempor invidunt ut labore et dolore.
.TI
Magna aliquyam erat, sed diam voluptua, at vero eos et accusam.
Et justo duo dolores et ea
.SPREAD
.IL 3.5P
rebum, stet clita kasd gubergren.  No sea takimata sanctus est,
lorem ipsum dolor sit amet.
.TI
Sit amet, consetetur sadipscing elitr, sed diam.  Nonumy eirmod
tempor in\%vi-
.EW .3
dunt ut labore et dolore magna.  Ali-
.EW 0
quyam erat sed diam voluptua.
At vero eos et accusam et justo duo dolores et ea rebum stet.
.ILQ
.TI
Dolores et ea rebum stet clita kasd gubergren, no sea takimata
sanctus.  Sadipscing elitr sed diam, nonumy eirmod tempor,
invidunt ut labore et dolore magna aliquyam erat.  Sed diam
voluptua, at vero eos et accusam et justo duo dolores et ea rebum.


Click here to see the results of processing the source file with groff.

Top

Formatted article

This example demonstrates some of mom’s formatting capabilities, as well as showing the use of “control macros” (a stylesheet) to design the appearance of a document.

\# A sample academic article, set in two columns with a 1.5-pica
\# gutter between them.  This example uses QUOTES, BLOCKQUOTES and
\# FOOTNOTES.
\#
\# In order to accomodate the narrow measure of the columns,
\# there's also a demonstration of things you can change with both
\# the typesetting macros and the document processing "control
\# macros".
\#
\# Since the text throughout is greeked, and groff doesn't know
\# how to hyphenate all that pseudo-Latinate nonsense, I've
\# inserted discretionary hyphens (\%) into a large number of the
\# the words.  Normally, this isn't necessary.
\#
\# Reference macros
\#
.TITLE     "CONTROL EQUALS CHAOS"
.SUBTITLE  "\*[ALD1]The Psychological and Auditory \
Impact of Serial vs. Aleatoric Music\*[RLD1]"
.AUTHOR    "Joe Chang" "and" "Brad Hegel Connors"
.COPYRIGHT "2004 J. Chang, B.H. Connors
.MISC      "Submitted June 3, 2004" "\*[IT]Piano Quarterly\*[PREV]"
\#
\# Docstyle macros
\#
.DOCTYPE    DEFAULT
.COPYSTYLE  FINAL
\#
\# Additional style macros--general type parameters
\#
.PRINTSTYLE   TYPESET
.L_MARGIN     6P
.R_MARGIN     4P+6p
.PT_SIZE      10
.RW          .1
.AUTOLEAD     1.5
\#
\# Additional style macros--change mom's default behaviour
\#
.RECTO_VERSO \" Flip margins & headers on odd and even pages
\#
.HEADER_LEFT      "Chang, Connors"
.COLUMNS           2 1P+6p
.SUBTITLE_SIZE     +1.5
.AUTHOR_SIZE       +.5
.DOCHEADER_LEAD    +2p
.HEADER_SIZE       +1
.PARA_INDENT       1P
.QUOTE_INDENT      2
.SUBHEAD_SIZE      +0
.BLOCKQUOTE_FAMILY H
.BLOCKQUOTE_SIZE   -2
\#
.COVER TITLE AUTHOR COPYRIGHT MISC
\#
.START
.PP
Lorem ipsum dolor sit amet, consetetur sadipscing elitr.  Sed
diam nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna.
Ali\%quyam erat, sed diam voluptua.
.PP
At vero eos et accusam et justo duo do\%lo\%res et ea rebum.  Stet
clita kasd gubergren no sea takimata.  Sanctus est, lorem ipsum
dolor sit amet.  Consetetur sadipscing elitr, sed diam nonumy.
Eirmod tempor invidunt ut labore et do\%lo\%re magna ali\%quyam
erat.  Sed diam voluptua at vero eos et accusam et justo.
.BLOCKQUOTE
Stet clita kasd gubergren, no sea takimata sanctus est lorem.
Ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy
eirmod tempor.  Invidunt ut labore et do\%lo\%re magna ali\%quyam
erat, sed diam voluptua at vero.  Eos et accusam et justo duo
do\%lo\%res et ea rebum stet clita.\c
.FOOTNOTE
Clita ipsum dolor sit amet, consetetur sadipscing elitr.
.FOOTNOTE OFF
.BLOCKQUOTE OFF
.PP
Duo do\%lo\%res et ea rebum, stet clita kasd gubergren.  No sea
takimata sanctus est lorem ipsum dolor sit amet, consetetur
sadipscing elitr.  Sed diam nonumy eirmod tempor invidunt ut
labore et do\%lo\%re magna ali\%quyam.  Erat sed diam voluptua at.
Vero eos et accusam et justo duo do\%lo\%res et ea rebum stet.
Clita kasd gubergren no sea takimata sanctus est.
.PP
Nonumy eirmod tempor invidunt, ut labore et do\%lo\%re magna
ali\%quyam erat?  At vero eos et accusam et justo duo do\%lo\%res
et ea.  Rebum stet clita kasd gubergren no sea takimata sanctus.
Est lorem ipsum dolor sit amet.  Sadipscing\c
.FOOTNOTE
Sadipscing diam nonumy eirmod tempor invidunt ut labore et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.
.FOOTNOTE OFF
 elitr sed diam nonumy eirmod tempor invidunt.  Ut labore et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At vero eos
et accusam et justo duo do\%lo\%res et ea rebum.  Stet clita kasd
gubergren no sea.
\#
.SUBHEAD "Schoenberg\[em]" "The Origins of Serial Pitch Organization"
\#
.PP
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed
diam nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna
ali\%quyam erat, sed diam voluptua.  At vero eos et accusam et
justo duo do\%lo\%res et ea rebum.  Stet clita kasd gubergren, no
sea takimata sanctus est lorem.  Ipsum dolor sit amet consetetur
sadipscing.  Elitr, sed diam nonumy, eirmod tempor invidunt ut
labore et do\%lo\%re magna.  Ali\%quyam erat sed diam voluptua, at
vero eos.  Et accusam et justo duo do\%lo\%res et ea rebum stet
clita kasd gubergren lorem ipsum.  Dolor sit amet consetetur,
sadipscing elitr, sed diam.  Nonumy eirmod tempor invidunt ut
labore et do\%lo\%re.  Magna ali\%quyam erat sed diam voluptua at
vero.  Eos et accusam et justo duo do\%lo\%res et ea rebum stet
clita kasd.  Gubergren no sea takimata sanctus est.
.PP
Amet consetetur sadipscing elitr sed diam nonumy eirmod.  Tempor
invidunt ut labore.  Et dolor\%e magna ali\%quyam erat, sed diam
voluptua, at vero.  Eos et accusam et justo duo do\%lo\%res et ea
rebum.  Stet clita kasd gubergren.
.PP
No sea takimata\c
.FOOTNOTE
Takimata sadipscing elitr, sed diam nonumy eirmod tempor invidunt
ut labore et do\%lo\%re magna ali\%quyam erat, sed diam voluptua.
.FOOTNOTE OFF
 sanctus est lorem. Ipsum dolor sit amet, consetetur sadipscing
elitr, sed diam nonumy eirmod tempor invidunt ut labore et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At vero eos
et accusam et justo duo do\%lo\%res et ea rebum amet.  Consetetur
sadipscing elitr sed diam nonumy eirmod tempor invidunt ut labore,
et do\%lo\%re magna ali\%quyam erat.  Sed diam voluptua, at vero,
eos et accusam et justo duo do\%lo\%res et ea rebum.
\#
.SUBHEAD "Messiaen to Stockhausen\[em]" "The Quest for Absolute Control"
\#
.PP
Vero eos et accusam et justo duo do\%lo\%res et ea rebum amet:
.QUOTE
Eirmod tempor invidunt
Ut labore et do\%lo\%re magna ali\%quyam erat
Sed diam voluptua
At vero eos et accusam et justo duo do\%lo\%res.
.QUOTE OFF
Lorem ipsum dolor sit amet, consetetur sadipscing elitr sed diam.
Nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna.
Aliquyam erat, sed diam voluptua at vero eos et accusam.  Et justo
duo do\%lo\%res et ea rebum stet.
.PP
Elitr sed diam nonumy eirmod tempor.  Invidunt ut labore et
do\%lo\%re magna ali\%quyam erat sed.  Diam voluptua at vero eos
et accusam et justo duo do\%lo\%res et ea rebum.
.BLOCKQUOTE
Sanctus est lorem ipsum dolor sit amet, consetetur sadipscing.
Elitr, sed diam nonumy eirmod tempor, invidunt ut labore et
do\%lo\%re magna ali\%quyam.  Erat sed diam voluptua, at vero eos
et accusam et justo rebum amet.  Consetetur sadipsc\%ing elitr
sed diam nonumy eirmod sed diam nonumy, eirmod tempor.  Invidunt
tempor invidunt ut labore.\c
.FOOTNOTE
Labore diam nonumy eirmod tempor, invidunt ut labore et do\%lo\%re
magna ali\%quyam.  Erat sed diam voluptua, at vero eos et accusam
et justo.
.FOOTNOTE OFF
 Et do\%lo\%re et magna ali\%quyam erat, sed diam voluptua, at
vero.
.BLOCKQUOTE OFF
.PP
Lorem ipsum dolor sit amet, consetetur sadipscing elitr.  Sed diam
nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna.
.PP
Nonumy eirmod tempor invidunt, ut labore et do\%lo\%re magna
ali\%quyam erat?  At vero eos et accusam et justo duo do\%lo\%res
et ea.  Rebum stet clita kasd gubergren no sea takimata sanctus.
Est lorem ipsum dolor sit amet.  Sadipscing elitr sed diam nonumy
eirmod tempor invidunt.  Ut labore et do\%lo\%re magna ali\%quyam
erat, sed diam voluptua.  At vero eos et accusam et justo duo
do\%lo\%res et ea rebum.  Stet clita kasd gubergren no sea.
Ali\%quyam erat, sed diam voluptua.
\#
.SUBHEAD "John Cage\[em]" "Leaving It All to Chance"
\#
.PP
Sit amet, consetetur sadipscing elitr, sed diam nonumy.  Eirmod
tempor invidunt ut labore et do\%lo\%re magna.  Ali\%quyam erat,
sed diam voluptua at vero.  Eos et accusam et justo duo dolores et
ea rebum.  Stet clita kasd gubergren, no sea taki\%mata sanctus
est.
.PP
Consetetur sadipscing elitr, sed diam nonumy eirmod tempor
invidunt ut labore et do\%lo\%re magna ali\%quyam erat, sed diam
voluptua.  At vero eos et accusam et justo duo do\%lo\%res et ea
rebum.  Stet clita kasd gubergren, no sea takimata sanctus est
lorem.  Ipsum dolor sit amet, consetetur sadipscing elitr, sed
diam nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna
ali\%quyam erat, sed diam voluptua.  At vero eos et accusam et
justo duo do\%lo\%res et ea rebum.
.PP
Stet clita kasd gubergren.  No sea takimata sanctus est lorem
ipsum dolor sit.  Amet consetetur sadipscing elitr, sed diam
nonumy eirmod tempor.  Invidunt ut labore et do\%lo\%re magna
ali\%quyam erat, sed diam voluptua, at vero.  Eos et accusam et
justo duo do\%lo\%res et ea rebum.  Stet clita kasd gubergren, no
sea takimata.  Sanctus est lorem ipsum dolor sit amet consetetur.
Sadipscing elitr sed diam nonumy eirmod tempor invidunt.  Ut
labore et do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At
vero eos et accusam et justo duo do\%lo\%res et ea rebum.
.BLOCKQUOTE
\!.RLD .5v
.PP
Stet clita kasd gubergren no sea.  Takimata sanctus est lorem
ipsum dolor sit amet.  Consetetur sadipscing elitr sed diam
nonumy eirmod tempor invidunt ut labore et do\%lo\%re.  Magna
ali\%quyam\c
.FOOTNOTE
Aliquyam nonumy eirmod tempor invidunt ut labore.
.FOOTNOTE OFF
 erat, sed diam voluptua at vero eos et accusam.  Et justo duo
do\%lo\%res et ea rebum, stet clita kasd gubergren, no sea
takimata.
.PP
Sanctus est lorem ipsum.  Dolor sit amet consetetur sadipscing
elitr.  Sed diam nonumy eirmod tempor invidunt ut labore.  Et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At vero eos
et accusam et justo duo.  Dolores et ea rebum stet clita kasd
gubergren no sea.
.PP
Takimata lorem ipsum dolor sit amet consetetur sadipscing elitr.
Sed diam, nonumy eirmod tempor, invidunt ut labore et do\%lo\%re
magna.  Aliquyam erat sed diam voluptua.  At vero eos et accusam
et justo.\c
.FOOTNOTE
Justo vero eos et accusam et justo duo.
.FOOTNOTE OFF
.BLOCKQUOTE OFF
.PP
Duo do\%lo\%res et ea rebum, stet clita kasd gubergren, no sea
takimata sanctus.  Est lorem ipsum.  Dolor sit amet, consetetur
sadipscing elitr, sed diam nonumy.  Eirmod tempor invidunt ut
labore et do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At
vero eos et accusam.
.PP
Et justo duo do\%lo\%res et ea rebum stet clita kasd.  Gubergren
no sea takimata sanctus est.  Lorem ipsum dolor sit amet,
consetetur sadipscing elitr, sed diam nonumy eirmod tempor
invidunt ut labore et dolore magna ali\%quyam erat, sed diam
voluptua.  At vero eos et accusam et justo duo dolores et ea
rebum.  Stet clita kasd gubergren, no sea takimata sanctus est.
\#
.SUBHEAD "Beyond Cage\[em]" "Catching the Midnight Train"
\#
.PP
Lorem ipsum dolor sit amet, consetetur sadipscing elitr.  Sed
diam nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna.
Ali\%quyam erat, sed diam voluptua.
.PP
At vero eos et accusam et justo duo do\%lo\%res et ea rebum.  Stet
clita kasd gubergren no sea takimata.  Sanctus est, lorem ipsum
dolor sit amet.  Consetetur sadipscing elitr, sed diam nonumy.
Eirmod tempor invidunt ut labore et do\%lo\%re magna ali\%quyam
erat.  Sed diam voluptua at vero eos et accusam et justo.
.PP
Duo do\%lo\%res et ea rebum, stet clita kasd gubergren.  No sea
takimata sanctus est lorem ipsum dolor sit amet, consetetur
sadipscing elitr.  Sed diam nonumy eirmod tempor invidunt ut
labore et do\%lo\%re magna ali\%quyam.  Erat sed diam voluptua at.
Vero eos et accusam et justo duo do\%lo\%res et ea rebum stet.
Clita kasd gubergren no sea takimata sanctus est.
.PP
Nonumy eirmod tempor invidunt, ut labore et do\%lo\%re magna
ali\%quyam erat?  At vero eos et accusam et justo duo do\%lo\%res
et ea.  Rebum stet clita kasd gubergren no sea takimata sanctus.
Est lorem ipsum dolor sit amet.  Sadipscing\c
.FOOTNOTE
Sadipscing diam nonumy eirmod tempor invidunt ut labore et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.
.FOOTNOTE OFF
 elitr sed diam nonumy eirmod tempor invidunt.  Ut labore et
do\%lo\%re magna ali\%quyam erat, sed diam voluptua.  At vero eos
et accusam et justo duo do\%lo\%res et ea rebum.  Stet clita kasd
gubergren no sea takimata lorem.  Ipsum dolor sit amet, consetetur
sadipscing elitr.  Sed diam nonumy eirmod tempor invidunt ut
labore et do\%lo\%re magna.  Ali\%quyam erat, sed diam voluptua.
At vero eos et accusam et justo duo do\%lo\%res et ea rebum.  Stet
clita kasd gubergren, no sea takimata sanctus est.
.PP
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed
diam nonumy eirmod tempor invidunt ut labore et do\%lo\%re magna
ali\%quyam erat, sed diam voluptua.  At vero eos et accusam et
justo duo do\%lo\%res et ea rebum.  Stet clita kasd gubergren, no
sea takimata sanctus est.
.FINIS


Click here to see the results of processing the source file with groff.

Top

Samples of the finished product

The following three samples were produced from the same source file. The first shows mom in classic, typewritten/double-spaced mode. The second is formatted for a 6x9 hardcover, excellent for screen reading. The third is a plate-ready paperback version with crop and register marks.

Click on the thumbnails below for pdfs of a couple of pages’ worth each document. (Please note: the thumbnails, their content, and all material in the files linked to them, both text and images, are copyright 2009 Peter Schaffter.)

Sample 1: Classic typewritten
typewritten sample

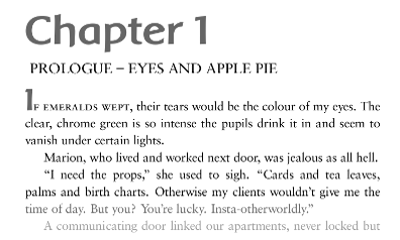

Sample 2: Hardcover
harcover sample

Sample 3: Paperback with crops
paperback sample

Top
